Cilium Tetragon
Описание
Модуль Cilium Tetragon обеспечивает мониторинг выполнения процессов, сетевой активности и файловых операций, применяя политики безопасности непосредственно на ядре.
Подключение модуля Cilium Tetragon
Описание Yaml
apiVersion: addon.bootsman.tech/v1alpha1
kind: Config
metadata:
name: CLUSTER_NAME-tetragon
namespace: CLUSTER_NAMESPACE
spec:
enabled: true (1)
values:
tetragon:
image:
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/tetragon
tetragonOperator:
image:
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/tetragon-operator
export:
stdout:
image:
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/hubble-export-stdout
rthooks:
image:
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/tetragon-rthooks
- True - включено.
False - выключено

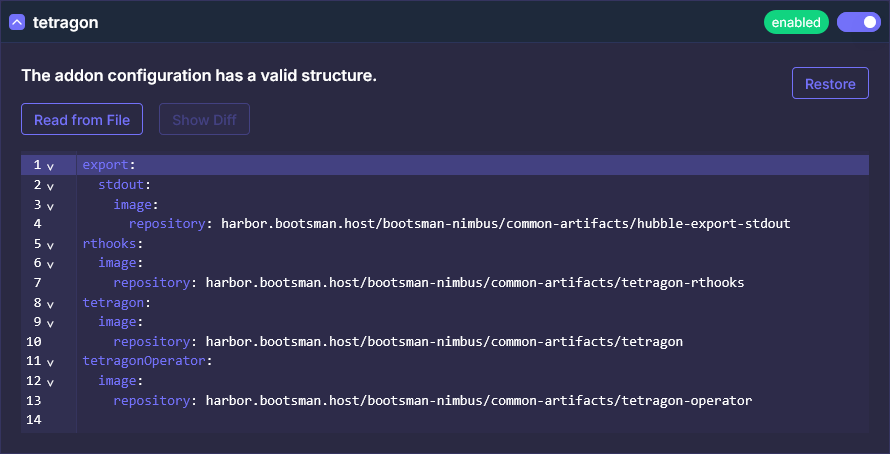

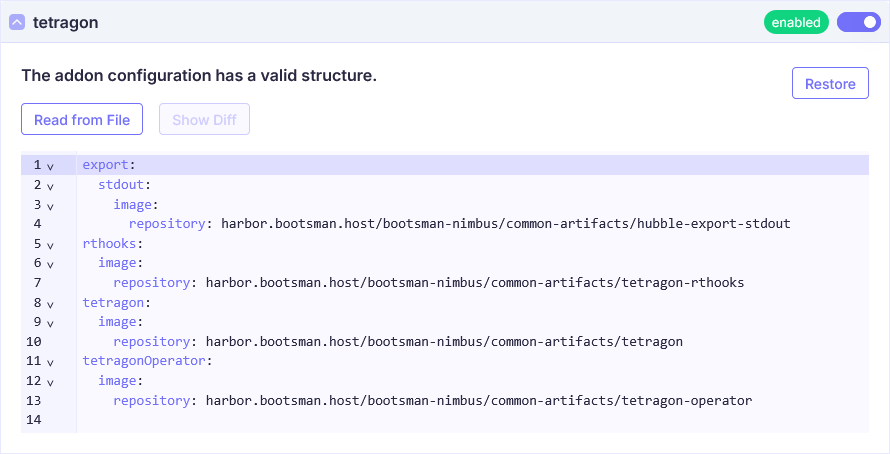

Настройка в UI
Все Values
Продвинутые настройки
Ниже представлены тонкие настройки модуля.
Используйте их для расширения конфигурации модуля, если потребуется.
Документация
Более полная документация по модулю:
Cilium Tetragon Docs
Cilium Tetragon Values
# Global settings
enabled: true
imagePullSecrets: []
# Tetragon agent settings
priorityClassName: ""
imagePullPolicy: IfNotPresent
serviceAccount:
create: true
annotations: {}
name: ""
podAnnotations: {}
podSecurityContext: {}
nodeSelector: {}
tolerations:
- operator: Exists
affinity: {}
extraHostPathMounts: []
extraConfigmapMounts: []
daemonSetAnnotations: {}
extraVolumes: []
updateStrategy: {}
podLabels: {}
daemonSetLabelsOverride: {}
selectorLabelsOverride: {}
podLabelsOverride: {}
serviceLabelsOverride: {}
# -- DNS policy for Tetragon pods.
#
# https://kubernetes.io/docs/concepts/services-networking/dns-pod-service/#pod-s-dns-policy
dnsPolicy: Default
# -- Directory to put Tetragon JSON export files.
exportDirectory: "/var/run/cilium/tetragon"
# -- Configures whether Tetragon pods run on the host network.
#
# IMPORTANT: Tetragon must be on the host network for the process visibility to
# function properly.
hostNetwork: true
tetragon:
enabled: true
nameOverride: ""
image:
override: ~
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/tetragon
tag: v1.6.0
resources: {}
extraArgs: {}
extraEnv: []
# extraEnv:
# - name: foo
# value: bar
podAnnotations:
enabled: false
extraVolumeMounts: []
securityContext:
privileged: true
# -- Overrides the default livenessProbe for the tetragon container.
livenessProbe: {}
# grpc:
# port: 54321
# -- Tetragon puts processes in an LRU cache. The cache is used to find ancestors
# for subsequently exec'ed processes.
processCacheSize: 65536
# -- If you want to run Tetragon in debug mode change this value to true
debug: false
# -- JSON export filename. Set it to an empty string to disable JSON export altogether.
exportFilename: tetragon.log
# -- JSON export file permissions as a string. Typically it's either "600" (to restrict access to
# owner) or "640"/"644" (to allow read access by logs collector or another agent).
exportFilePerm: "600"
# -- Size in megabytes at which to rotate JSON export files.
exportFileMaxSizeMB: 10
# -- Number of rotated files to retain.
exportFileMaxBackups: 5
# -- Compress rotated JSON export files.
exportFileCompress: false
# -- Rate-limit event export (events per minute), Set to -1 to export all events.
exportRateLimit: -1
# -- Allowlist for JSON export. For example, to export only process_connect events from
# the default namespace:
#
# exportAllowList: |
# {"namespace":["default"],"event_set":["PROCESS_EXEC"]}
exportAllowList: |-
{"event_set":["PROCESS_EXEC", "PROCESS_EXIT", "PROCESS_KPROBE", "PROCESS_UPROBE", "PROCESS_TRACEPOINT", "PROCESS_LSM"]}
# -- Denylist for JSON export **(for file sinks only; does not filter gRPC output)**. For example, to exclude exec events that look similar to
# Kubernetes health checks and all the events from kube-system namespace and the host:
#
# exportDenyList: |
# {"health_check":true}
# {"namespace":["kube-system",""]}
#
exportDenyList: |-
{"health_check":true}
{"namespace":["", "cilium", "kube-system"]}
# -- Filters to include or exclude fields from Tetragon events. Without any filters, all
# fields are included by default. The presence of at least one inclusion filter implies
# default-exclude (i.e. any fields that don't match an inclusion filter will be
# excluded). Field paths are expressed using dot notation like "a.b.c" and multiple
# field paths can be separated by commas like "a.b.c,d,e.f". An optional "event_set" may
# be specified to apply the field filter to a specific set of events.
#
# For example, to exclude the "parent" field from all events and include the "process"
# field in PROCESS_KPROBE events while excluding all others:
#
# fieldFilters: |
# {"fields": "parent", "action": "EXCLUDE"}
# {"event_set": ["PROCESS_KPROBE"], "fields": "process", "action": "INCLUDE"}
#
fieldFilters: ""
# -- Filters to redact secrets from the args fields in Tetragon events. To perform
# redactions, redaction filters define RE2 regular expressions in the `redact`
# field. Any capture groups in these RE2 regular expressions are redacted and
# replaced with "*****".
#
# For more control, you can select which binary or binaries should have their
# arguments redacted with the `binary_regex` field.
#
# NOTE: This feature uses RE2 as its regular expression library. Make sure that you follow
# RE2 regular expression guidelines as you may observe unexpected results otherwise.
# More information on RE2 syntax can be found [here](https://github.com/google/re2/wiki/Syntax).
#
# NOTE: When writing regular expressions in JSON, it is important to escape
# backslash characters. For instance `\Wpasswd\W?` would be written as
# `{"redact": "\\Wpasswd\\W?"}`.
#
# As a concrete example, the following will redact all passwords passed to
# processes with the "--password" argument:
#
# {"redact": ["--password(?:\\s+|=)(\\S*)"]}
#
# Now, an event which contains the string "--password=foo" would have that
# string replaced with "--password=*****".
#
# Suppose we also see some passwords passed via the -p shorthand for a specific binary, foo.
# We can also redact these as follows:
#
# {"binary_regex": ["(?:^|/)foo$"], "redact": ["-p(?:\\s+|=)(\\S*)"]}
#
# With both of the above redaction filters in place, we are now redacting all
# password arguments.
redactionFilters: ""
# -- Name of the cluster where Tetragon is installed. Tetragon uses this value
# to set the cluster_name field in GetEventsResponse messages.
clusterName: ""
# -- Access Kubernetes API to associate Tetragon events with Kubernetes pods.
enableK8sAPI: true
# -- Enable Capabilities visibility in exec and kprobe events.
enableProcessCred: false
# -- Enable Namespaces visibility in exec and kprobe events.
enableProcessNs: false
processAncestors:
# -- Comma-separated list of process event types to enable ancestors for.
# Supported event types are: base, kprobe, tracepoint, loader, uprobe, lsm, usdt. Unknown event types will be ignored.
# Type "base" is required by all other supported event types for correct reference counting.
# Set it to "" to disable ancestors completely.
enabled: ""
# -- Set --btf option to explicitly specify an absolute path to a btf file. For advanced users only.
btf: ""
# -- Override the command. For advanced users only.
commandOverride: []
# -- Override the arguments. For advanced users only.
argsOverride: []
prometheus:
# -- Whether to enable exposing Tetragon metrics.
enabled: true
# -- The address at which to expose metrics. Set it to "" to expose on all available interfaces.
address: ""
# -- The port at which to expose metrics.
port: 2112
# -- Comma-separated list of enabled metrics labels.
# The configurable labels are: namespace, workload, pod, binary. Unknown labels will be ignored.
# Removing some labels from the list might help reduce the metrics cardinality if needed.
metricsLabelFilter: "namespace,workload,pod,binary"
serviceMonitor:
# -- Whether to create a 'ServiceMonitor' resource targeting the tetragon pods.
enabled: false
# -- The set of labels to place on the 'ServiceMonitor' resource.
labelsOverride: {}
# -- Extra labels to be added on the Tetragon ServiceMonitor.
extraLabels: {}
# -- Interval at which metrics should be scraped. If not specified, Prometheus' global scrape interval is used.
scrapeInterval: 60s
grpc:
# -- Whether to enable exposing Tetragon gRPC.
enabled: true
# -- The address at which to expose gRPC. Examples: localhost:54321, unix:///var/run/cilum/tetragon/tetragon.sock
address: "localhost:54321"
gops:
# -- Whether to enable exposing gops server.
enabled: true
# -- The address at which to expose gops.
address: "localhost"
# -- The port at which to expose gops.
port: 8118
pprof:
# -- Whether to enable exposing pprof server.
enabled: false
# -- The address at which to expose pprof.
address: "localhost"
# -- The port at which to expose pprof.
port: 6060
# -- Enable policy filter. This is required for K8s namespace and pod-label filtering.
enablePolicyFilter: True
# -- Enable policy filter cgroup map.
enablePolicyFilterCgroupMap: false
# -- Enable policy filter debug messages.
enablePolicyFilterDebug: false
# -- Enable latency monitoring in message handling
enableMsgHandlingLatency: false
healthGrpc:
# -- Whether to enable health gRPC server.
enabled: true
# -- The port at which to expose health gRPC.
port: 6789
# -- The interval at which to check the health of the agent.
interval: 10
# -- Location of the host proc filesystem in the runtime environment. If the runtime runs in the
# host, the path is /proc. Exceptions to this are environments like kind, where the runtime itself
# does not run on the host.
hostProcPath: "/proc"
# -- Configure the number of retries in tetragon's event cache.
eventCacheRetries: 15
# -- Configure the delay (in seconds) between retires in tetragon's event cache.
eventCacheRetryDelay: 2
# -- Persistent enforcement to allow the enforcement policy to continue running even when its Tetragon process is gone.
enableKeepSensorsOnExit: false
# -- Configure the interval (suffixed with s for seconds, m for minutes, etc) for the process cache garbage collector.
processCacheGCInterval: 30s
# -- Configure tetragon pod so that it can contact the CRI running on the host
cri:
enabled: false
# -- path of the CRI socket on the host. This will typically be
# "/run/containerd/containerd.sock" for containerd or "/var/run/crio/crio.sock" for crio.
socketHostPath: ""
# -- Enabling cgidmap instructs the Tetragon agent to use cgroup ids (instead of cgroup names) for
# pod association. This feature depends on cri being enabled.
cgidmap:
enabled: false
usePerfRingBuffer: false
# Tetragon Operator settings
tetragonOperator:
# -- Enables the Tetragon Operator.
enabled: true
# -- The name of the Tetragon Operator deployment.
nameOverride: ""
# -- Number of replicas to run for the tetragon-operator deployment
replicas: 1
# -- Lease handling for an automated failover when running multiple replicas
failoverLease:
# -- Enable lease failover functionality
enabled: false
# -- Kubernetes Namespace in which the Lease resource is created. Defaults to the namespace where Tetragon is deployed in, if it's empty.
namespace: ""
# -- If a lease is not renewed for X duration, the current leader is considered dead, a new leader is picked
leaseDuration: 15s
# -- The interval at which the leader will renew the lease
leaseRenewDeadline: 5s
# -- The timeout between retries if renewal fails
leaseRetryPeriod: 2s
# -- Annotations for the Tetragon Operator Deployment.
annotations: {}
# -- Annotations for the Tetragon Operator Deployment Pods.
podAnnotations: {}
# -- Extra labels to be added on the Tetragon Operator Deployment.
extraLabels: {}
# -- Extra labels to be added on the Tetragon Operator Deployment Pods.
extraPodLabels: {}
# -- priorityClassName for the Tetragon Operator Deployment Pods.
priorityClassName: ""
# -- tetragon-operator service account.
serviceAccount:
create: true
annotations: {}
name: ""
# -- securityContext for the Tetragon Operator Deployment Pods.
podSecurityContext: {}
# -- securityContext for the Tetragon Operator Deployment Pod container.
containerSecurityContext:
runAsUser: 65532
runAsGroup: 65532
runAsNonRoot: true
allowPrivilegeEscalation: false
capabilities:
drop:
- "ALL"
# -- securityContext for the Tetragon Operator Deployment Pod container. (DEPRECATED: Use containerSecurityContext instead. TODO: Remove in v1.6.0)
securityContext: {}
# -- resources for the Tetragon Operator Deployment Pod container.
resources:
limits:
cpu: 500m
memory: 128Mi
requests:
cpu: 10m
memory: 64Mi
# -- resources for the Tetragon Operator Deployment update strategy
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
# -- Steer the Tetragon Operator Deployment Pod placement via nodeSelector, tolerations and affinity rules.
nodeSelector: {}
tolerations: []
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
topologyKey: kubernetes.io/hostname
labelSelector:
matchLabels:
app.kubernetes.io/name: tetragon-operator
# -- tetragon-operator image.
image:
override: ~
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/tetragon-operator
tag: v1.6.0
pullPolicy: IfNotPresent
# -- Extra volumes for the Tetragon Operator Deployment.
extraVolumes: []
extraVolumeMounts: []
forceUpdateCRDs: false
podInfo:
# -- Enables the PodInfo CRD and the controller that reconciles PodInfo
# custom resources.
enabled: false
tracingPolicy:
# -- Enables the TracingPolicy and TracingPolicyNamespaced CRD creation.
enabled: true
prometheus:
# -- Enables the Tetragon Operator metrics.
enabled: true
# -- The address at which to expose Tetragon Operator metrics. Set it to "" to expose on all available interfaces.
address: ""
# -- The port at which to expose metrics.
port: 2113
serviceMonitor:
# -- Whether to create a 'ServiceMonitor' resource targeting the tetragonOperator pods.
enabled: false
# -- The set of labels to place on the 'ServiceMonitor' resource.
labelsOverride: {}
# -- Extra labels to be added on the Tetragon Operator ServiceMonitor.
extraLabels: {}
# -- Interval at which metrics should be scraped. If not specified, Prometheus' global scrape interval is used.
scrapeInterval: 60s
# -- Tetragon events export settings
export:
# "stdout". "" to disable.
mode: "stdout"
resources: {}
securityContext: {}
# filenames defines list of files for fluentd to tail and export.
filenames:
- tetragon.log
# stdout specific exporter settings
stdout:
# -- Extra environment variables to add to the export-stdout container.
# Example:
# extraEnv:
# - name: FOO
# value: bar
# - name: SECRET_KEY
# valueFrom:
# secretKeyRef:
# name: my-secret
# key: secret-key
extraEnv: []
# -- Extra envFrom sources to add to the export-stdout container.
# This allows adding any type of envFrom source (configMapRef, secretRef, etc.).
# Example:
# extraEnvFrom:
# - configMapRef:
# name: my-config-map
# - secretRef:
# name: my-secret
# optional: true
extraEnvFrom: []
# -- A simplified way to add secret references to envFrom.
# Can be specified either as a string (just the secret name) or as an object with additional parameters.
# Example:
# envFromSecrets:
# - my-simple-secret
# - name: my-optional-secret
# optional: true
envFromSecrets: []
# * When enabledCommand=true and commandOverride is not set, the command inserted will be hubble-export-stdout.
# This supports the default for the current deployment instructions to deploy stdout-export sidecar container.
# * When enabledCommand=true and commandOverride override is set, the command inserted will be the value of commandOverride.
# This is useful for inserting another sidecar container that requires a command override.
# * When enabledCommand=false, no command will be specified in the manifest and container's default command will take over.
enabledCommand: true
# * When enabledArgs=true and argsOverride is not set, the args inserted will be the default ones for export-stdout.
# * When enabledArgs=true and argsOverride override is set, the args value inserted will be the value of argsOverride.
# This is useful for inserting another sidecar container that requires args override.
# * When enabledArgs=false, no command will be specified in the manifest and container's default args value will take over.
enabledArgs: true
# specific manifest command to use
commandOverride: []
# specific manifest args to use
argsOverride: []
# Extra volume mounts to add to stdout export pod
extraVolumeMounts: []
image:
override: ~
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/hubble-export-stdout
tag: v1.1.1
crds:
# -- Method for installing CRDs. Supported values are: "operator", "helm" and "none".
# The "operator" method allows for fine-grained control over which CRDs are installed and by
# default doesn't perform CRD downgrades. These can be configured in tetragonOperator section.
# The "helm" method always installs all CRDs for the chart version.
installMethod: "operator"
# -- Method for installing Tetagon rthooks (tetragon-rthooks) daemonset
# The tetragon-rthooks daemonset is responsible for installing run-time hooks on the host.
# See: https://tetragon.io/docs/concepts/runtime-hooks
rthooks:
# -- Enable the Tetragon rthooks daemonset
enabled: false
# -- tetragon-rthooks name override
nameOverride: ""
# -- Method to use for installing rthooks. Values:
#
# "oci-hooks":
# Add an apppriate file to "/usr/share/containers/oci/hooks.d". Use this with CRI-O.
# See https://github.com/containers/common/blob/main/pkg/hooks/docs/oci-hooks.5.md
# for more details.
# Specific configuration for this interface can be found under "ociHooks".
#
# "nri-hook":
# Install the hook via NRI. Use this with containerd. Requires NRI being enabled.
# see: https://github.com/containerd/containerd/blob/main/docs/NRI.md.
# Specific configuration for this interface can be found under "nriHook".
#
interface: ""
# -- Annotations for the Tetragon rthooks daemonset
annotations: {}
# -- Extra labels for the Tetrargon rthooks daemonset
extraLabels: {}
# -- Pod annotations for the Tetrargon rthooks pod
podAnnotations: {}
# -- priorityClassName for the Tetrargon rthooks pod
priorityClassName: ""
# -- security context for the Tetrargon rthooks pod
podSecurityContext: {}
# -- installDir is the host location where the tetragon-oci-hook binary will be installed
installDir: "/opt/tetragon"
# -- Comma-separated list of namespaces to allow Pod creation for, in case tetragon-oci-hook fails to reach Tetragon agent.
# The namespace Tetragon is deployed in is always added as an exception and must not be added again.
failAllowNamespaces: ""
# -- Extra volume mounts to add to the oci-hook-setup init container
extraVolumeMounts: []
# -- resources for the the oci-hook-setup init container
resources: {}
# -- extra args to pass to tetragon-oci-hook
extraHookArgs: {}
# -- configuration for "oci-hooks" interface
ociHooks:
# -- directory to install .json file for running the hook
hooksPath: "/usr/share/containers/oci/hooks.d"
# -- configuration for the "nri-hook" interface
nriHook:
# -- path to NRI socket
nriSocket: "/var/run/nri/nri.sock"
# -- image for the Tetragon rthooks pod
image:
override: ~
repository: harbor.bootsman.host/bootsman-nimbus/common-artifacts/tetragon-rthooks
tag: v0.8
# -- rthooks service account.
serviceAccount:
name: ""
